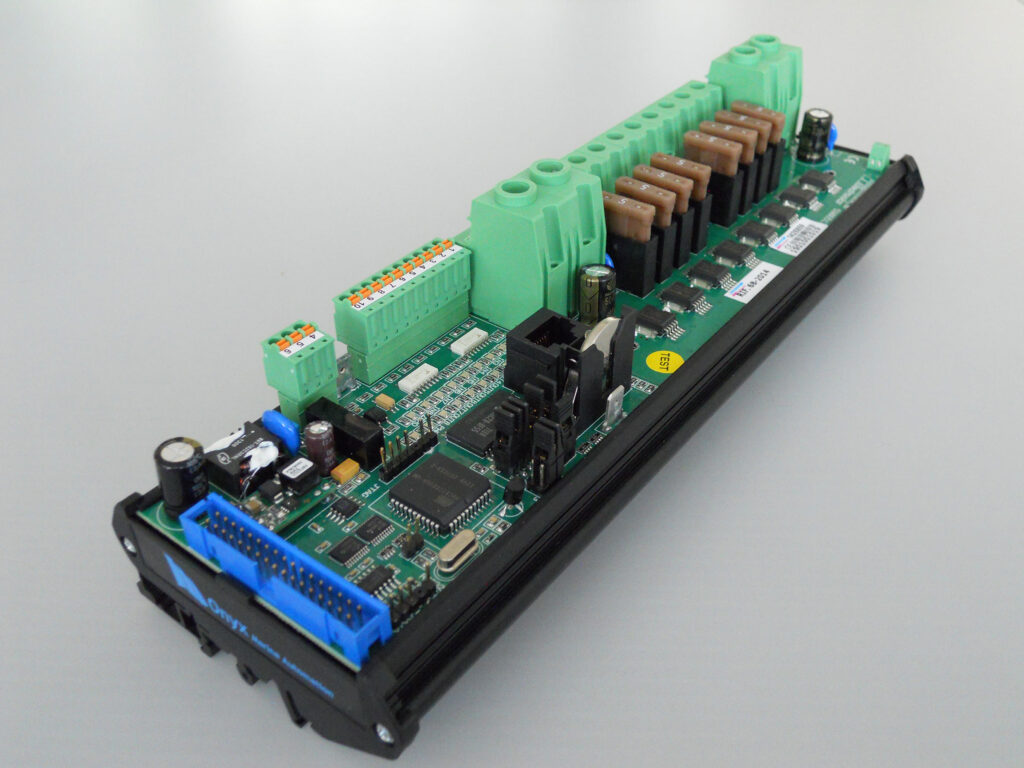

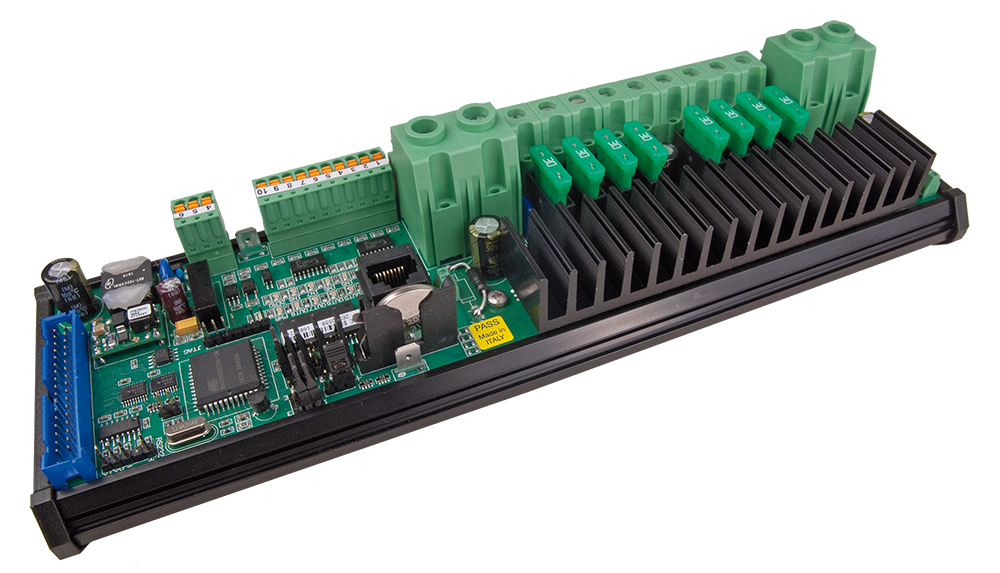

Solid-state power modules

These power modules replace the traditional circuit breakers and control relays for managing lights, pumps and any other DC or AC device.

Download Data Sheet

To provide overload and short circuit protection, each module measures the current drained by the load and automatically breaks the circuit if the current exceeds the programmed threshold. Additional safety is provided by an onboard fuse on each channel. By checking current consumption, the system detects faults such as failing bulbs, idle or jammed pumps or interrupted circuits.

Each channel can be controlled by the automation system and traditional, hard-wired switches that provide local control, e.g. cabin lights. Automatic functions for tank draining and bilge suction are also provided. Should the automation system be switched off for any reason, modules will continue to work in stand-alone mode.

A low-current version is also available for controlling and monitoring LED navigation lights.

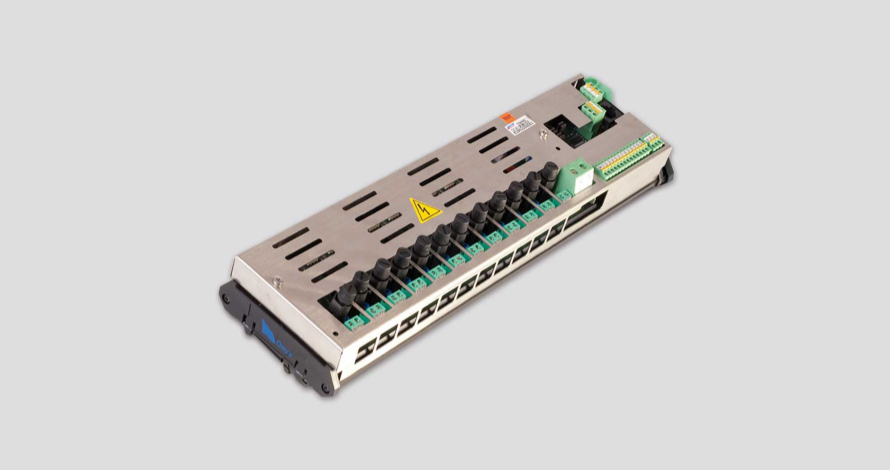

Available versions: DC (12/24 VDC, 8 16A channels) – AC (230 VAC, 12 2.5A channels) – NL (24 VDC, 7 2.5A channels)

-->
