Analog I/O modules

Our analog modules are designed to deal with all signal inputs from the onboard sensors.

Download Data Sheet

Input channels can monitor battery voltage (0-40V), 4-20mA signals to interface with industry-standard sensors, and 0-200mV signals to read battery currents by means of shunts. They also support the most common temperature sensors (PT100, PT1000, thermocouple and RTD) and resistive sensors to interface with level gauges, trim tabs and rudder angle sensors. Output channels can handle devices controlled by voltage modulated analog signals.

Single or dual outputs ranging from 0-5V to 0-10V are also available.

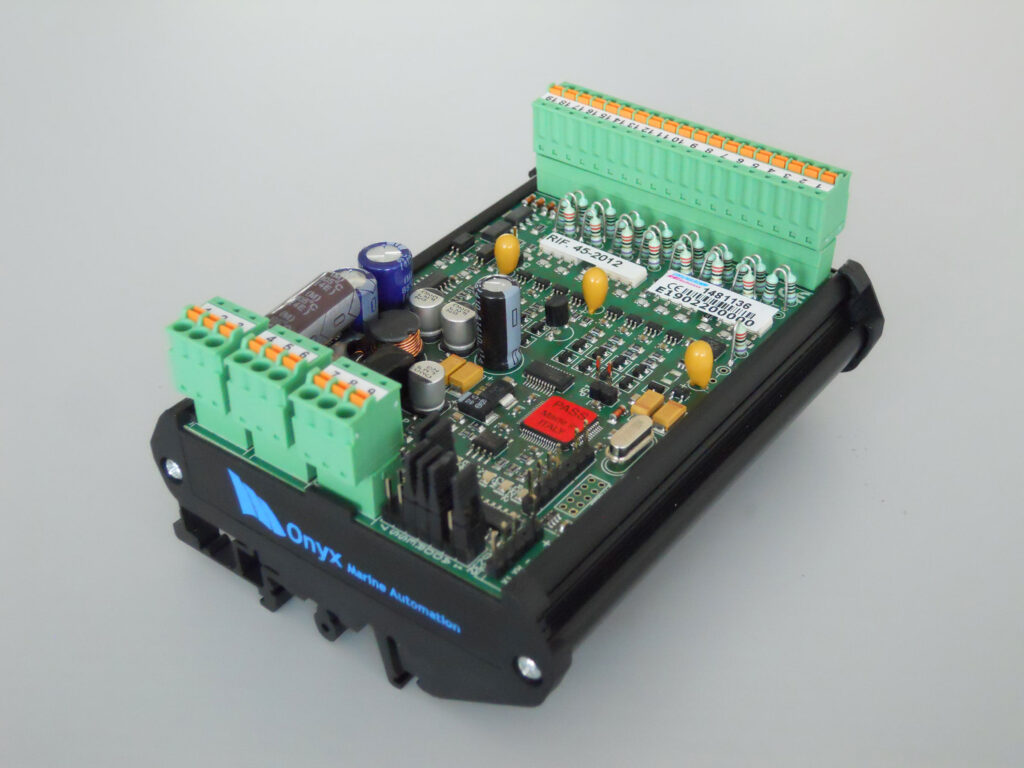

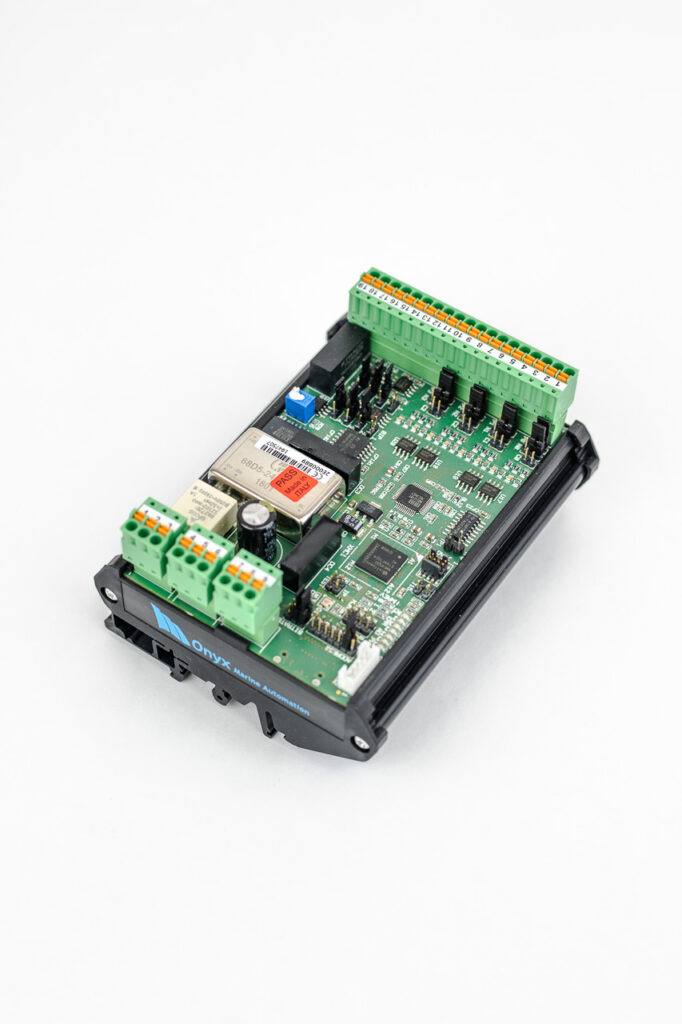

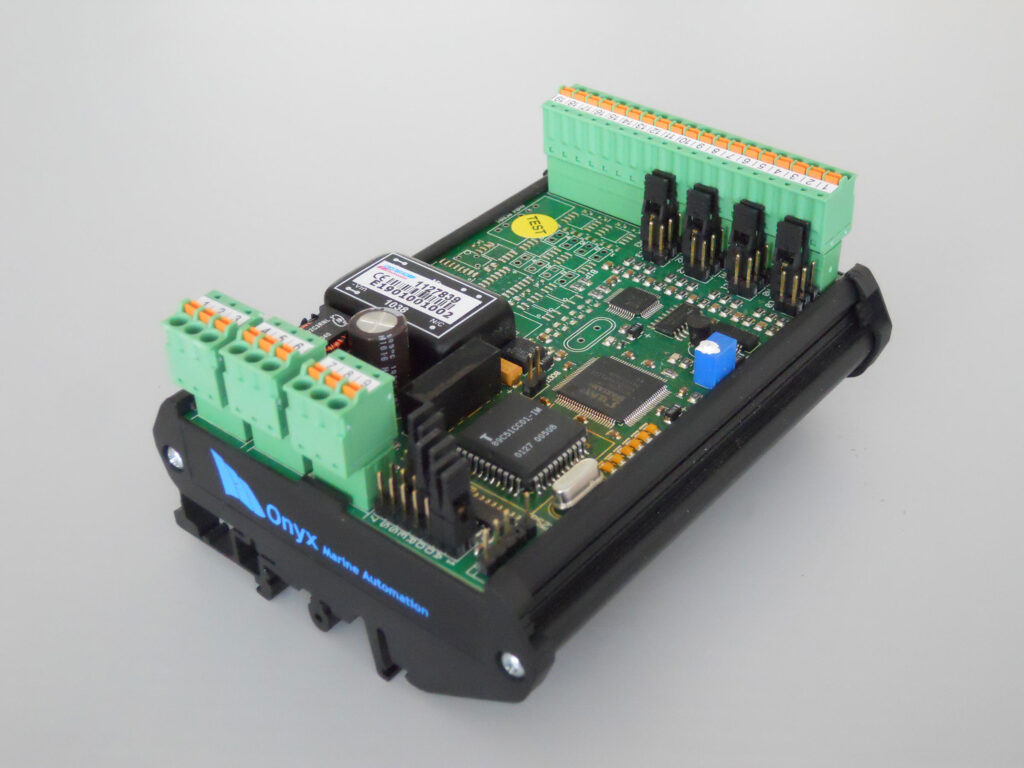

Available versions: 8 inputs (0-40V, 4-20mA, 0-200mV configurable) – 4 inputs (4-20mA, PT100, PT1000, TC, RTD configurable) – 4 outputs (±0-5V, ±0-10V configurable)

-->
